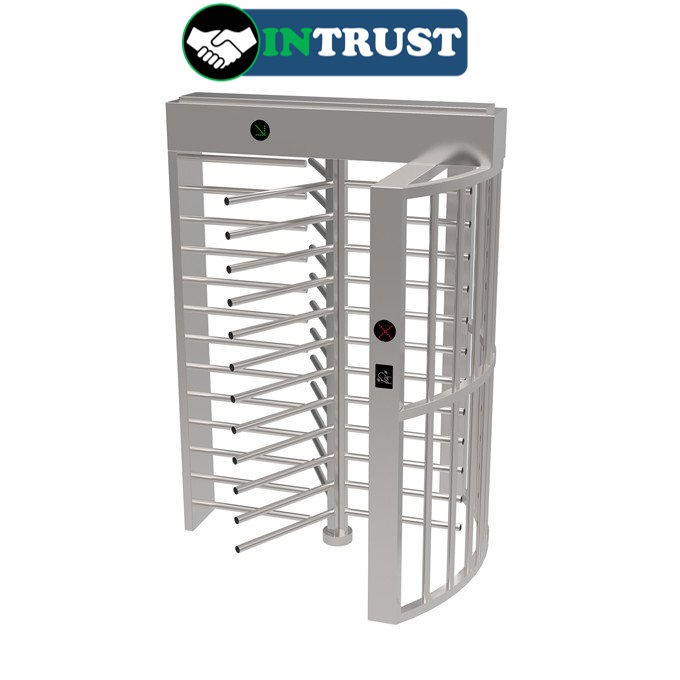

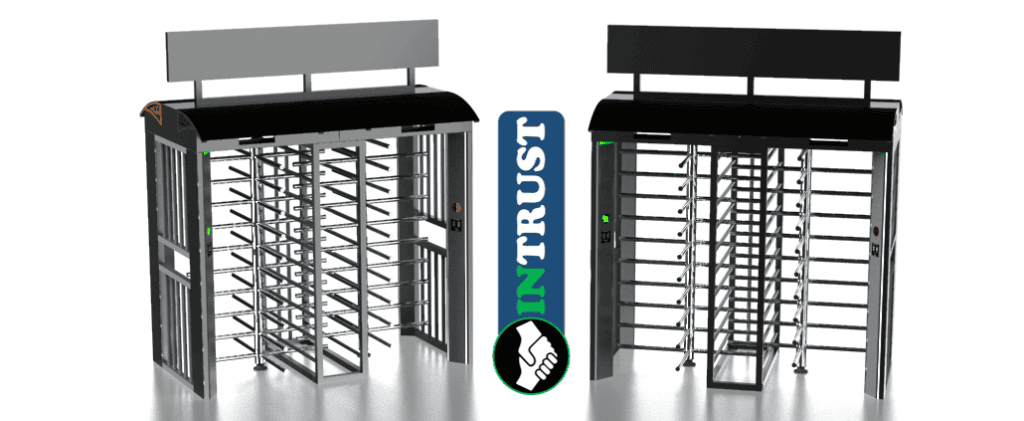

Full Height Turnstile With Hydraulic Damper
The high turnstile also called the rotary gate. It was developed from the tripod turnstile and learns from the characteristics of the revolving door (the biggest difference is that the blocking body is not a glass door but a metal fence). According to the height of the blocking body, it is divided into the full-height rotary gate (also called full-high gate or full height security turnstile) and half-height turning gate (also called semi-high turning gate).
It is divided into mechanical and semi-automatic types from the movement control method. It is divided into a single channel, dual channel, three channel, four channel, etc. from the number of channels. Single channel and dual channel are common.
Technical Parameter of Full Height Turnstile
- Supply Voltage: 110V-240V, 50HZ
- Arm length ：600(mm)
- Weight ：180kg
- Running direction：Single direction, bi-direction
- Drive Solenoid:DC 24V
- Working temperature: -15℃ – 60 ℃
- Relative humidity： ≤95%, No Condensation
- Input Interface： +12 V level signal or pulse width> DC12V pulse signal of 100ms
- Communication Interface: RS485/Relay signal
- Communication Distance: ≤1200m
- Arm Length: 600mm
- Passing speed: 30people/min(normal open), 20people/min (normal close)
The safety of the full-height turnstile is the highest among all the gates, and the only one that can be unattended in all gates. Strong waterproof and dust-proof, adaptable to the environment, suitable for outdoor and indoor. But the full height turnstile price is the higher than other types of turnstile gate.
